What Is a 13 Tons Disc Brake Axle

What Is a 13 Tons Disc Brake Axle

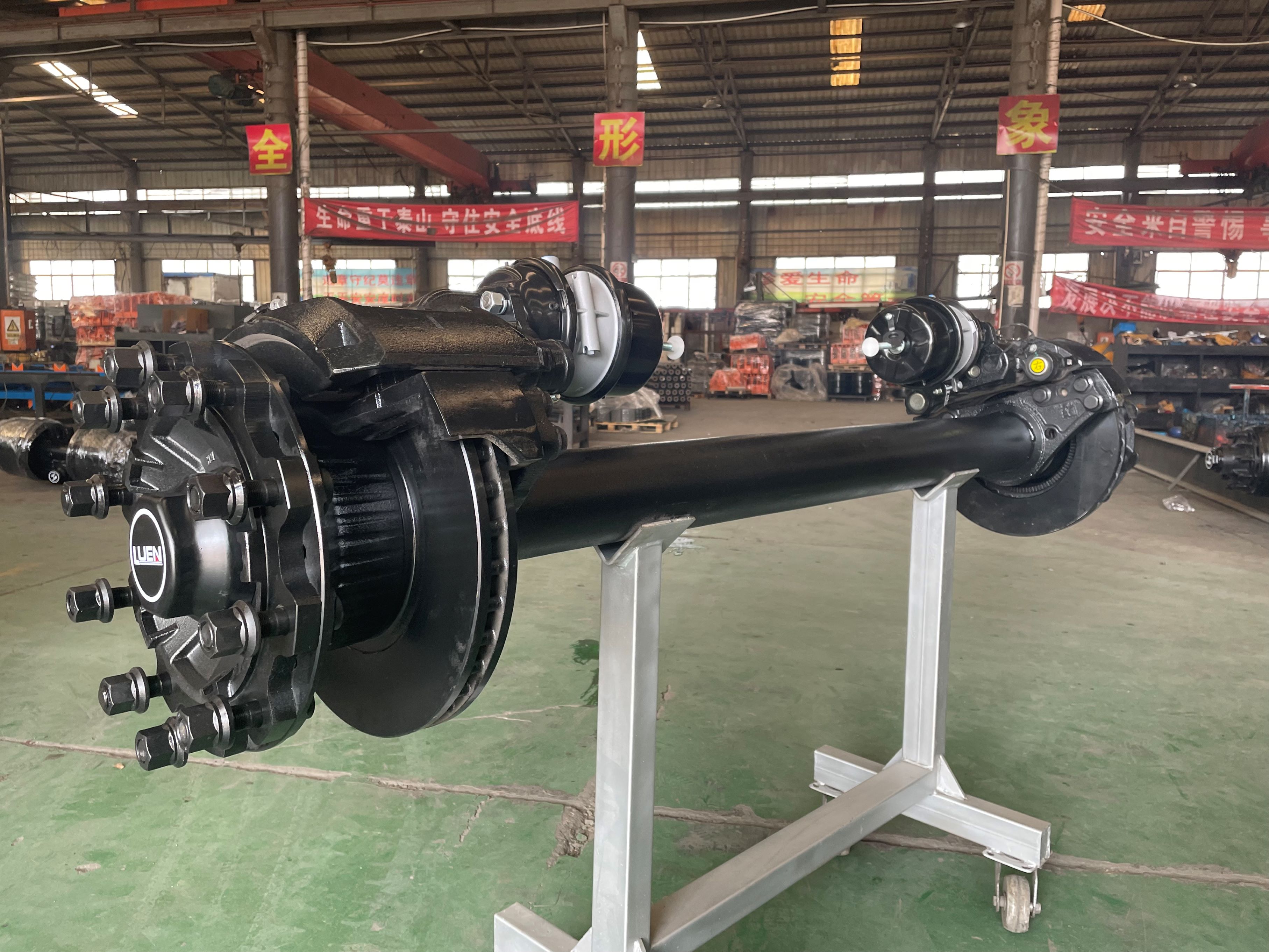

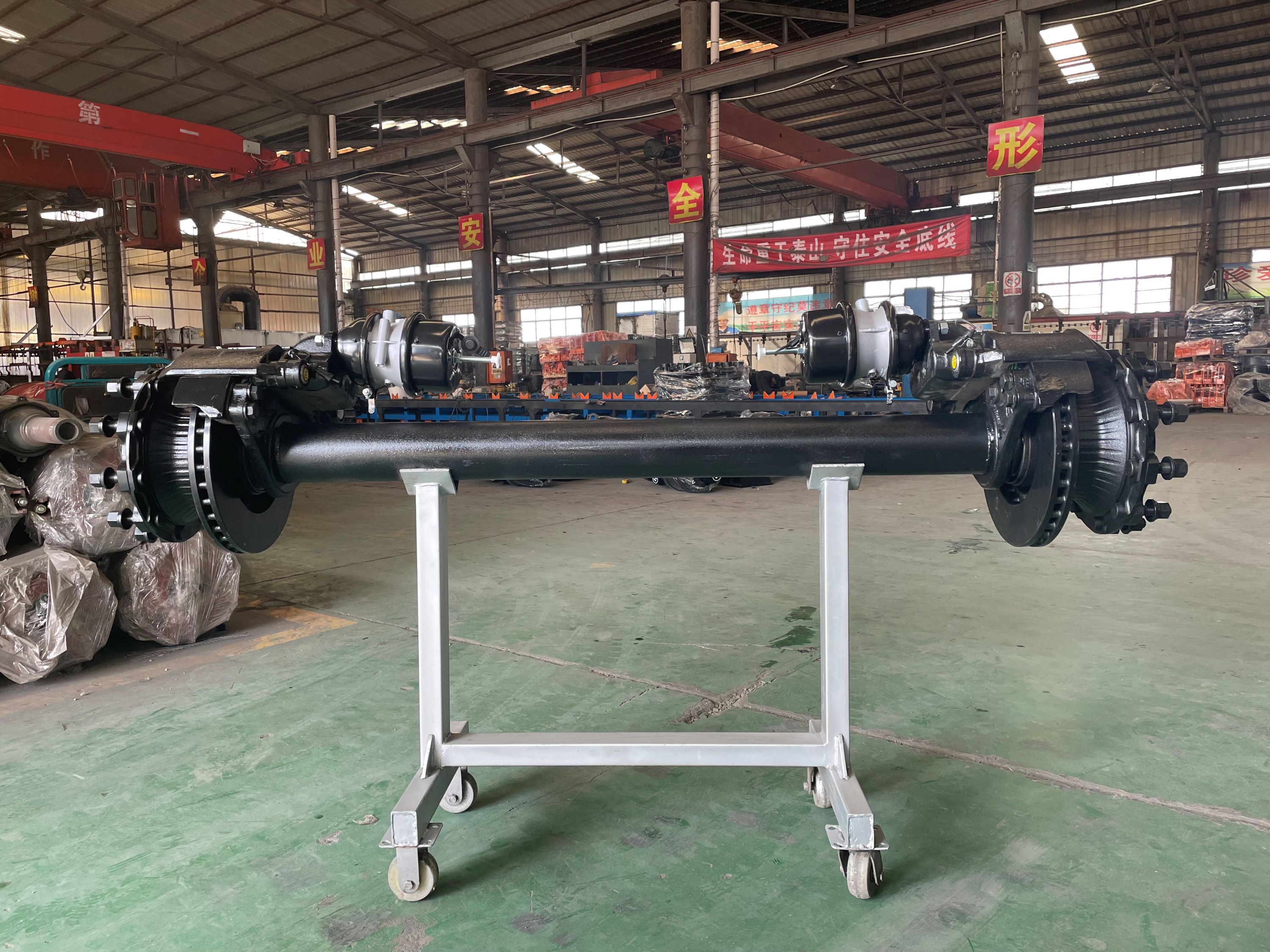

A 13 Tons Disc Brake Axle is a heavy-duty trailer axle designed for semi-trailers and cargo trucks with a maximum load capacity of 13 tons. It uses a disc brake system instead of traditional drum brakes, offering stronger braking force, shorter braking distance, and better heat dissipation.

Main Features of 13 Tons Disc Brake Axle

1. High Load Capacity

• Max capacity: 13 tons per axle

• Suitable for 2–4 axle configurations on 30–60+ ton trailers

• Designed for long-distance and heavy-load transport

2. Disc Brake System

The disc brake system includes:

• Brake disc (rotor)

• Brake caliper (brake card)

• Brake pads

• Connecting discs at both ends of the axle

Advantages:

• Stronger and more stable braking force

• Shorter braking distance

• Better heat dissipation than drum brakes

• Less brake fade on long downhill sections

3. Axle Beam Design

Common axle beam options:

• Square beam: 150×150 mm or 127×127 mm

• Round beam: 127 mm or 146 mm diameter

• Material: high-strength steel (e.g., 20Mn2, Q345B)

These designs provide:

• Strong structural integrity

• Good resistance to bending and torsion

• Long service life under heavy loads

4. Track and Dimensions

Typical specifications:

• Track width: 1840 mm or 1850 mm

• Total length: around 2180–2200 mm

• Brake size: 420×150 mm, 420×180 mm, or 430×45 mm (disc type)

• Wheel fixing: 10×M22×1.5 ISO or 10×M20×1.5

• P.C.D.: 285.75 mm or 335 mm

These dimensions match most standard semi-trailer wheel and suspension systems.

13 Tons Disc Brake Axle vs Drum Brake Axle

1. Braking Performance

• Disc brake axle:

  • Faster response and more linear braking

  • Better heat dissipation

  • Less prone to brake fade

• Drum brake axle:

  • Good for low-speed, heavy-load applications

  • Generally lower cost

  • More sensitive to heat buildup on long descents

For high-speed, long-distance transport, disc brakes are usually preferred.

2. Maintenance

• Disc brakes:

  • Easier to inspect and replace pads

  • Less internal contamination (dust, water)

  • Slightly higher component cost

• Drum brakes:

  • More complex internal structure

  • More parts to inspect and adjust

  • Often cheaper to replace

3. Weight and Heat Management

• Disc brake systems are often lighter and manage heat better.

• This helps reduce brake fade and improves safety on mountain routes and long downhill sections.

How to Choose the Right 13 Tons Disc Brake Axle

1. Match Load Capacity and Axle Count

Check:

• Total trailer load (e.g., 30–60 tons)

• Number of axles (2, 3, or 4)

• Required capacity per axle (13 tons, 14 tons, 16 tons, etc.)

A 13-ton axle is ideal for medium to heavy semi-trailers with 2–4 axles.

2. Confirm Track and Dimensions

Ensure:

• Track width: 1840 mm or 1850 mm (depending on your suspension)

• Axle beam: round or square, matching your existing setup

• Brake size and mounting points compatible with your wheels and hubs

3. Choose Brake Type and ABS

Decide:

• Disc brake size (e.g., 420×150, 420×180, 430×45)

• Whether you need ABS for better safety and compliance

• Compatible brake calipers and pads for your operating conditions

4. Check Quality and Certification

Look for:

• High-strength steel axle beams

• Trusted bearings and brake components

• ISO, DOT, ECE, or other relevant certifications

• Warranty and after-sales support

Advantages of 13 Tons Disc Brake Axle

• Strong braking performance – shorter braking distance and better control.

• Excellent heat dissipation – reduces brake fade on long descents.

• Reliable under heavy loads – 13-ton capacity for demanding applications.

• Easy maintenance – disc brakes are simpler to inspect and service.

• Good compatibility – works with standard suspensions, wheels, and ABS systems.

Limitations and Considerations

• Higher initial cost – disc brake axles are usually more expensive than drum brake axles.

• Requires proper maintenance – brake pads and discs must be checked regularly.

• Not always necessary for light loads – for very light or low-speed applications, drum brakes may be sufficient.

Why Choose LUEN 13 Tons Disc Brake Axles

LUEN supplies high-quality 13 Tons Disc Brake Axles designed for heavy-duty semi-trailers. Our axles:

• Use high-strength steel (20Mn2, Q345B) for strong, durable axle beams.

• Feature reliable disc brake systems with excellent heat dissipation.

• Support 13-ton capacity with 1840/1850 mm track options.

• Offer square (150×150 mm) or round (127 mm) axle beam designs.

• Are compatible with ABS and standard semi-trailer wheels and suspensions.

• Come with full testing, warranty, and after-sales support.

Whether you need axles for flatbed, van, container, or low bed trailers, LUEN can provide the right 13 Tons Disc Brake Axle for your fleet.
