For heavy-duty transport operations involving 100-ton payloads, the reliability of the suspension system directly impacts both operational safety and long-term maintenance costs. In challenging environments such as mining and large-scale construction, the Cantilever Argo Bogie Suspension has become a standard choice for its mechanical durability.
The LUEN 100ton 3-axle trailer utilizes this specific suspension setup to address the core challenges of heavy-haulage: structural fatigue, component friction, and tire degradation.
When evaluating an Argo bogie suspension for sale, it is essential to look at the structural choices that contribute to its service life. LUEN has implemented several engineering refinements that prioritize functional stability over complex electronics.

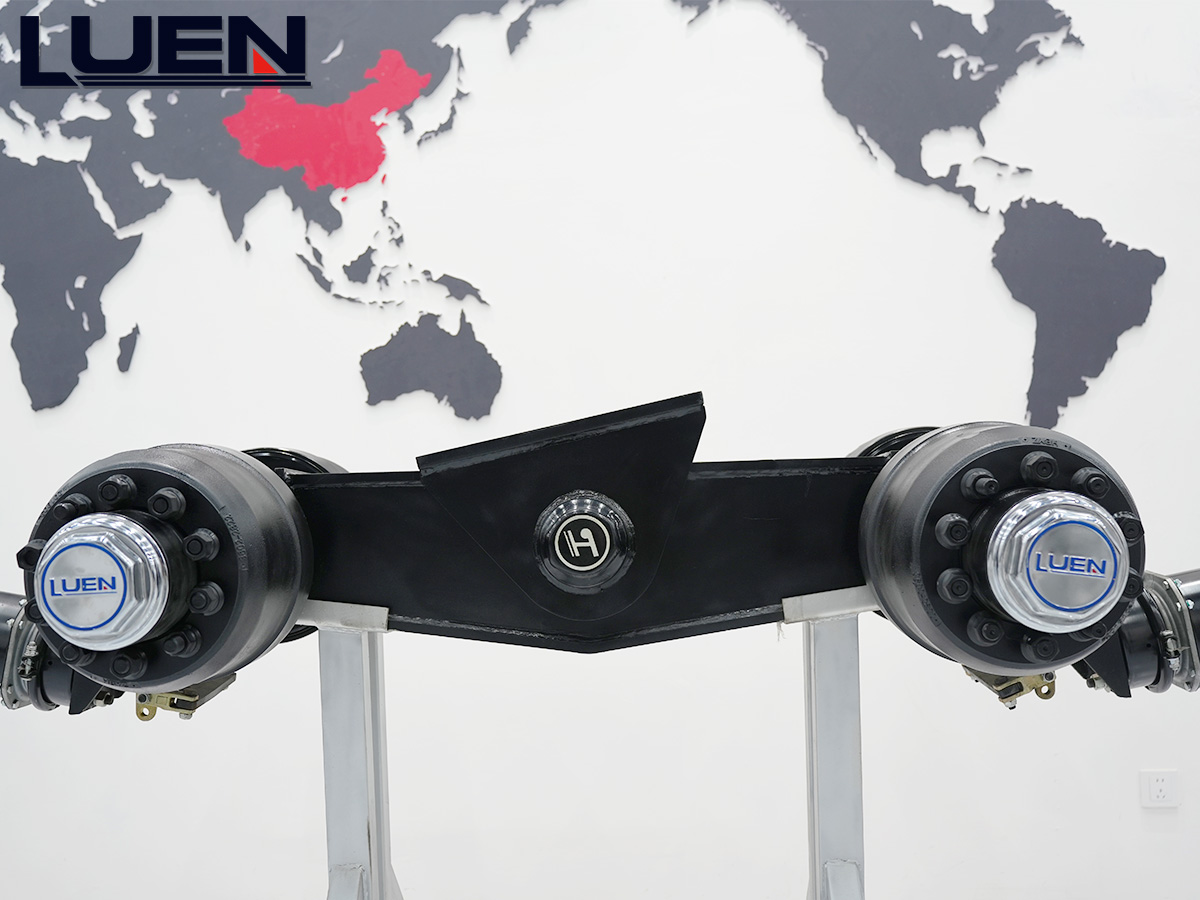

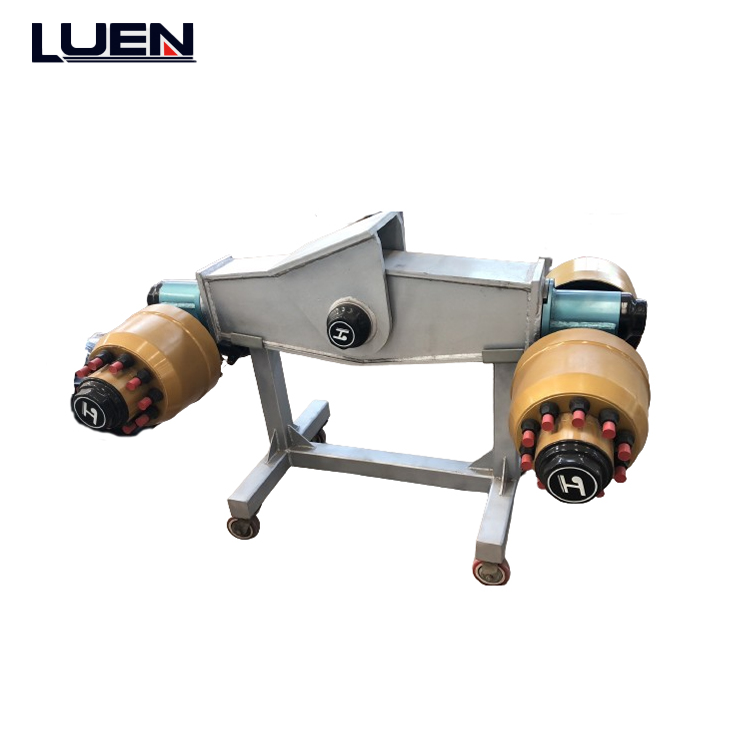

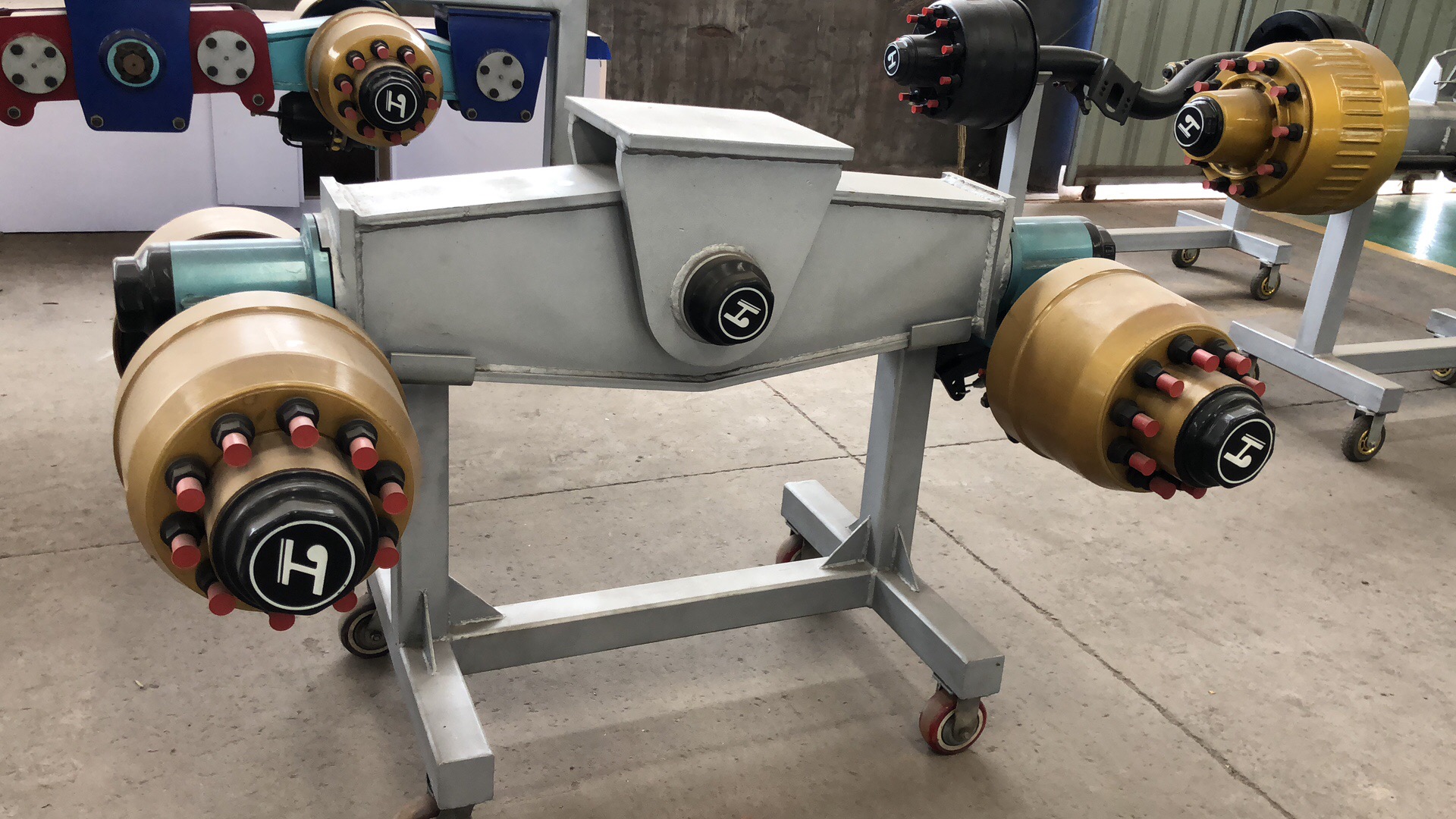

The LUEN design features a closed box body configuration. This engineering choice serves two primary functions:
Rigidity and Weight Balance: The box structure provides high torsional stiffness while maintaining a relatively light weight, which is critical for the trailer's overall payload capacity.
Anti-Displacement Mechanism: Because of this rigid box body, the leaf spring will not be laterally displaced during use. This prevents the alignment issues often seen in open-channel suspensions when the vehicle traverses uneven or sloped terrain.
Mechanical friction is the primary cause of downtime in heavy-duty bogie systems. To mitigate this, LUEN has integrated functional maintenance points into the hardware:
Wear-Resistant Blocks: The balance arm is equipped with high-durability wear-resistant blocks.
Grease Lubrication Nozzles: LUEN has positioned grease nozzles specifically at the balance arm interface. This allows for consistent lubrication, which effectively reduces the sliding friction between the steel plate spring and the wear-resistant block. Lower friction results in reduced heat buildup and less frequent part replacement.
Tire replacement remains one of the highest operational costs in the 100-ton transport sector. The LUEN Argo suspension addresses this through precise geometric calibration:
Optimized Torsion Bar Angle: The torsion bar angle is designed to manage the frequent turbulence and vibrations associated with a fully loaded vehicle.
Reduced Friction Slip: By refining this angle, the system minimizes the instantaneous friction slip distance between the tire and the ground during vertical movement.
Service Life Extension: This reduction in micro-skidding directly lowers the rate of tire tread wear, allowing fleet managers to extend the service life of each tire set.
that mechanical simplicity often outperforms complex air-ride systems in off-road or high-capacity scenarios. The LUEN cantilever Argo bogie suspension is built on this principle of mechanical integrity.
By focusing on the physical interaction between the suspension components and the road surface, LUEN provides a platform that maintains load equalization across all three axles. This prevents axle overloading and reduces the stress transferred to the trailer’s main chassis.
The performance of the LUEN Argo suspension is defined by its practical advantages in the field:
Consistent Stability: The closed-box body ensures the trailer remains stable under maximum load conditions.
Simplified Maintenance: Integrated grease points allow for easy servicing, reducing the risk of component seizure.
Cost Efficiency: Optimized geometry protects the most expensive consumables—the tires—from premature wear.
Reliable Alignment: The elimination of lateral leaf spring displacement reduces the need for frequent axle realignments.
For operators requiring a durable, 100-ton capacity solution, the LUEN brand offers a balanced approach to engineering that emphasizes long-term utility and reduced total cost of ownership.
