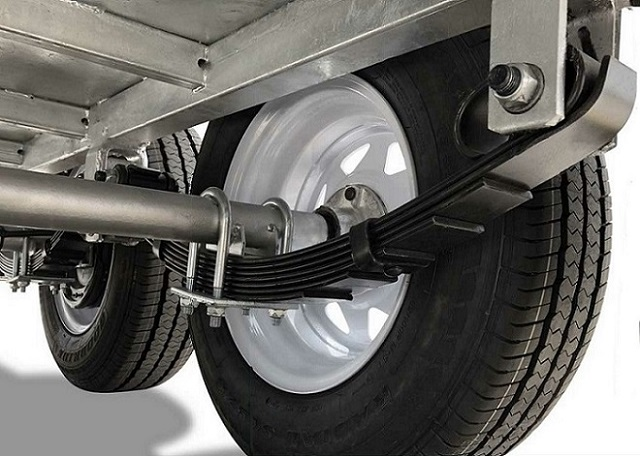

Leaf springs are a cornerstone of many heavy-duty truck suspension systems. Their primary role is to support the vehicle’s weight and maintain ride height, preventing the rear from sagging under heavy loads. They also help keep the truck balanced and the tires firmly planted on the road during acceleration, braking, and uneven terrain, allowing for various modifications to meet specific needs.
Knowing how to replace leaf springs is an essential skill for truck owners and technicians alike. Whether your springs are worn, cracked, or you're upgrading for better performance, this guide provides a thorough, professional walkthrough of the process-from preparation to final inspection.
Leaf springs are durable but not invincible. Over time, they can develop cracks, corrosion, or lose their shape, leading to poor ride quality and handling issues. Common signs that indicate it's time for leaf spring replacement include:
Rear suspension sagging or uneven ride height, with or without load
Noticeable slouching or leaning to one side
Suspension bottoming out on bumps
Reduced load-carrying capability or difficulty hauling
Visible cracks, fractures, or bent leaves on steel springs
Excessive wear, fraying, or cracking on composite springs
Damaged or worn spring eyes, bushings, center bolts, or U-bolts
Early inspection is key. Small cracks or misalignments can worsen quickly, so replacing springs at the first sign of trouble can save downtime and costly repairs.
Not all leaf springs are created equal. Experts strongly recommend using OE-approved or high-quality aftermarket springs designed to meet the original specifications of your truck. When selecting replacements, look for:
Proper vertical and horizontal leaf alignment
Durable protective coatings free of scaling or rust
Manufacturer part numbers stamped clearly on the spring
Rolled spring eyes with round, tight-fitting bushings
Intact, centered spring centre bolts and rebound clips, including a wide range of centre bolts for various applications.
Consider your truck's load capacity and ride height requirements to ensure the replacement springs restore or improve your suspension's performance.
Before starting, gather the following:
Hydraulic jack and sturdy jack stands
Wheel chocks
Wrenches and socket sets
Pry bar
Penetrating oil for loosening rusty bolts
Replacement leaf springs, U-bolts, shackles, bushings, hardware, and a hammer null
Torque wrench
Safety gloves and eye protection
Work on a flat, stable surface and always follow safe lifting and handling procedures. Leaf springs are heavy and can be hazardous if mishandled.
Begin by preparing the suspension system several days in advance. Apply penetrating oil liberally to all bolts, nuts, and brackets to loosen corrosion and ease removal. Take care not to scratch any parts that will be reused.
Park the truck on level ground and apply the parking brake.
Place wheel chocks in front of the front tires to prevent rolling.
Loosen rear wheel lug nuts slightly.
Use a hydraulic jack to lift the rear of the truck at least three inches.
Securely position jack stands under the rear axle.
Remove the rear wheels completely to gain clear access to the leaf springs.
Remove shock absorbers attached near the leaf springs if they obstruct removal.
Loosen and remove the nuts and washers from the U-bolts securing the leaf spring pack to the axle.
Remove the base plate holding the spring pack.
Slightly raise the axle to create clearance.
Using a pry bar, carefully lift the leaf spring pack off the center pin.
Remove the bolt from the spring’s front mount and set the front of the spring aside.
Remove fasteners from the rear mount and detach the shackle pin and shackle.
Inspect bushings and replace if worn or damaged.
Lay out the new leaf spring kit and verify all parts, including the new springs.
Install the new shackle and insert the inner-shackle hinge pin through the steel sleeve.
Position the rear end of the leaf spring on the shackle and secure it with locking nuts-do not fully tighten yet.
Raise the front end of the leaf spring and align it with the forward mount bracket.
Insert the mounting bolt and loosely secure with a locking nut.
Lower the rear end until it contacts the axle center pin.
If the axle or frame has shifted sideways, move the axle to align with the leaf spring pins-not the other way around-to prevent bushing damage.
Install new U-bolts and base plate from the replacement kit.
Using a torque wrench, tighten all nuts and bolts-including shackles, mounting bolts, and U-bolts-to the manufacturer’s specifications.
Reattach shock absorbers and secure tightly.
Reinstall rear wheels and torque lug nuts properly.
Remove jack stands and lower the truck carefully.
Recheck lug nut tightness once the truck is on the ground.
Measure ride height to ensure the truck sits evenly.
Take a test drive to confirm suspension performance and handling.
Retorque all fasteners after 1,000 to 3,000 miles to maintain joint integrity.
Regularly inspect leaf springs and related components for wear or damage.
Always replace springs in pairs to maintain balanced suspension.
Leaf springs are heavy and can be difficult to handle. Use lifting equipment and wear gloves and eye protection.
Rusted or damaged bolts may require cutting tools-use appropriate safety gear and tools.
Follow all technical bulletins and manufacturer torque specifications carefully.
Avoid forcing parts to fit; proper alignment prevents premature bushing failure.
Take your time and work methodically to avoid damaging new or existing components.
Replacing leaf springs is a manageable task with the right preparation, tools, and knowledge. Whether you’re addressing worn springs or upgrading your vehicle’s suspension system, following this professional guide ensures a safe, effective replacement that restores your truck’s ride quality and load capacity. Regular inspection and timely replacement of leaf springs help maintain vehicle safety and performance over the long haul.
When replacing leaf springs, ensure you have the right tools and safety equipment. Start by lifting the vehicle securely and removing the old springs. Follow a step-by-step guide for proper installation of new springs, ensuring all bolts are tightened to manufacturer specifications for optimal safety and performance.
Do you need an alignment after replacing leaf springs?
Yes, it's generally recommended to get an alignment after replacing leaf springs. Since leaf springs affect the suspension geometry of your vehicle, changing them can alter the wheel alignment. Proper alignment ensures that your tires wear evenly and enhances handling and safety. So, after installing new leaf springs, it's a good idea to have a professional check and adjust the alignment if necessary.
